OVERVIEW

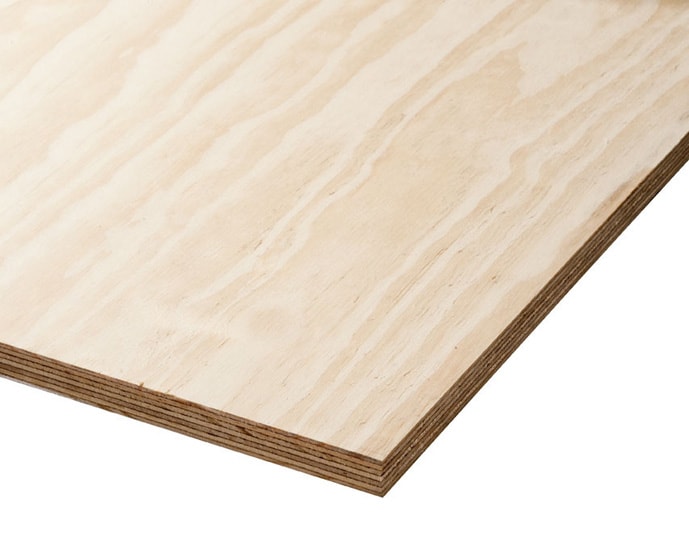

Armourply “The world’s strongest plywood” is manufactured using plantation and regrowth eucalypt veneers.

Hardwood Plywood

Armourply “The world’s strongest plywood” is manufactured using plantation and regrowth eucalypt veneers.

Description

Armourply Hardwood
Stress Grade F17/F14, F22/F14, F27/F22

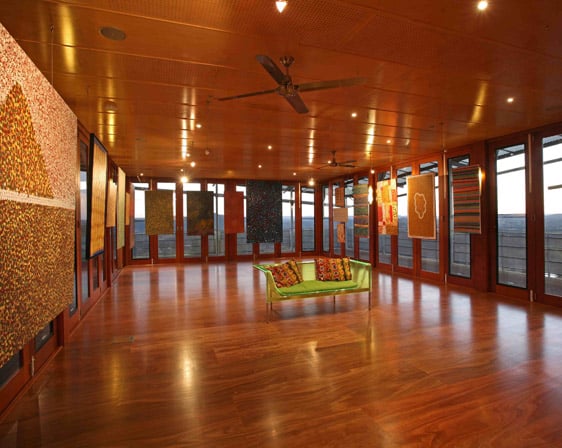

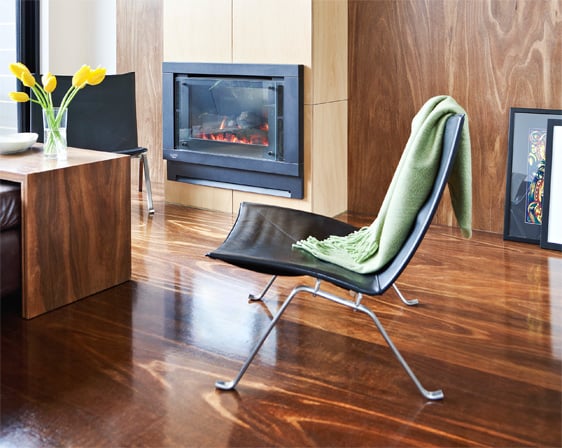

Armourply “The world’s strongest plywood” is manufactured using plantation and regrowth eucalypt veneers. Manufactured under the PAA/JAS-ANZ third party audited quality control program to Australian Standard AS2271, it is designed, tested and approved to tolerate extremes of heat and humidity and to resist shrinkage. Its tolerance of changes in ambient temperature and its toughness make Armourply hardwood ideal as flooring for hard-wearing areas, and is ideal for mezzanine floors.

In unexposed applications, such as internal flooring, the structural properties of Armourply hardwood far exceed any other plywood product manufactured in Australia. Its high spanning capabilities can withstand higher point loads, or provide wider joist spans to save on materials.

When used as an engineered flooring panel for industrial and commercial applications, loading requirements are in accordance with Australian Standard AS/NZS1170.1 SAA Loading Code Part 1 Dead and Live Loads and Load Combinations.

SPECIFICATIONS

Standards: Manufactured to AS/NZS2271. Graded to AS/NZS2271
Sheet Size (mm): 2400 x 1200, 1800 x 1200
Thickness (mm): 15, 18, 21 (Others may be available on request)
Plywood Grade: SD (to Big River grading specification), DD, SS

Timber Species

  • Blackbutt (Eucalyptus pilularis)
  • Flooded Gum (Eucalyptus grandis)
  • Spotted Gum (Corymbia citriodora)
  • Sydney Blue Gum (Eucalyptus saligna)

Stress Grade:

  • Blackbutt – F27/F22
  • Flooded Gum – F22/F14
  • Spotted Gum – F27/F22
  • Sydney Blue Gum – F27/F22

Moisture Content: 8% to 15%
Tolerances: As per AS/NZS2271
Adhesive: Fortified melamine urea formaldehyde (AS/NZS2754.1)
Bond: Type B (AS/NZS2098.2)
Formaldehyde Emission: Super E0

Certification:

  • EWPAA.
  • Chain of Custody AS4707
