ArmourPly Structural Plywood
Structural plywood for bracing, flooring, and general construction
Hardwood Plywood
7mm to 25mm
1200mm
2400mm
Clearance Sale now on.
Shop the SALE nowAbout ArmourPly Structural Plywood
ArmourPly is Big River’s structural plywood, manufactured to AS/NZS 2269 for bracing, flooring substrate and general structural construction. Structural plywood is defined by its A-bond (Type A phenolic) glue line, which is permanent and weather resistant, and by its stress grading, which is what separates a structural panel from a non-structural one. Every ArmourPly sheet is stress graded and produced under EWPAA-audited quality assurance, so its capacity is verified rather than assumed.
ArmourPly is available in stress grades from F11 to F27, in thicknesses from 7mm to 25mm (and greater on request), in standard 2400 x 1200mm sheets. F11 radiata pine panels suit bracing, residential flooring and lining, while higher grades such as F22 and F27 use dense hardwood veneers (flooded gum, blackbutt, spotted gum and Sydney blue gum) for commercial and industrial flooring. The range is termite resistant without chemical treatment.
Common applications include wall and roof bracing, structural flooring and mezzanines, internal lining, and joinery substrates. As an Australian manufacturer, Big River can advise on grade and thickness selection against your span and load requirements. Talk to your local trade centre, or browse the full structural plywood range and related T&G flooring and roofing ply.
ArmourPly specifications at a glance
| Specification | Detail |
|---|---|
| Standard | AS/NZS 2269 |
| Stress grades | F11 to F27 |
| Thickness | 7mm to 25mm standard, thicker on request |
| Sheet size | 2400 x 1200mm |
| Species | Radiata pine (F11); flooded gum, blackbutt, spotted gum, Sydney blue gum (F22 and F27) |
| Glue line | A-Bond (Type A phenolic), permanent and weather resistant |
| Termite resistance | Termite resistant without chemical treatment |
| Quality assurance | EWPAA-audited, every sheet stress graded |
Should I use structural plywood or LVL?
They solve different structural problems. ArmourPly structural plywood is a panel: cross-laminated veneers with an A-Bond glue line, used for bracing, flooring substrate and lining across an area. LVL (laminated veneer lumber) is a linear member: veneers bonded with the grain running in one direction, used for beams, lintels, joists and framing where load is carried along a length. Many jobs use both, plywood over LVL joists being a common floor build-up. Big River supplies LVL beams and framing alongside the plywood range.
| ArmourPly structural plywood | LVL | |
|---|---|---|
| How it is made | Cross-laminated veneers, A-Bond phenolic glue line | Kiln-dried veneers bonded with the grain in one direction |
| Standard | AS/NZS 2269 | AS/NZS 4357 |
| Typical use | Bracing, flooring substrate, internal lining, joinery | Beams, lintels, headers, joists, wall framing, formwork |
| Available sizes | 7mm to 25mm thick, 2400 x 1200mm sheets | Depths 90mm to 600mm, widths 35mm to 75mm, lengths to 13.2m (up to 15.6m available) |
Technical Specifications & Variants
Available Variants
| Product Code | Width (mm) | Length (mm) | Thickness (mm) | Mass (kg/m²) |
|---|---|---|---|---|
| APLY-07-1224 | 1200 | 2400 | 7 | 4.2 |
| APLY-12-1224 | 1200 | 2400 | 12 | 7.2 |
| APLY-17-1224 | 1200 | 2400 | 17 | 10.2 |
Swipe left to see more columns
Full Specifications
| Sheet Size (mm) | 2400 x 1200 |
| Thickness (mm) | 7, 9, 12, 15, 17, 19, 21, 25, 32, 35, 39, 45, 50 |
| Stress Grade | F11 |
| Timber Species | Radiata Pine |
| Sheet Size (mm) | 2400 x 1200 |
| Thickness (mm) | 7, 9, 12, 15, 17, 19, 21, 25, 32, 35, 39, 45, 50 |
| Plywood Grades | AA, AB, AC, AD, BB, BC, BD, CC, CD, DD |
| Stress Grade | F11, (F14 on request) |
| Timber Species | Radiata Pine |
| Applications | Wall panelling, bracing, ceiling |
| Sheet Size (mm) | 2400 x 1200, 2250 x 1200 |
| Thickness (mm) | 15, 17, 19, 21, 25 |
| Plywood | Grade CD |
| Stress Grade | F11 (F14 on request) |
| Timber Species | Radiata Pine |
| Applications | Structural residential flooring, mezzanines, transportables. |
| Sheet Size (mm) | 2400 x 1200 |
| Thickness (mm) | 12, 15 |
| Plywood | Grade DD |
| Stress Grade | F11 |
| Timber Species | Radiata Pine |
| Benefits | Reduced penetration of wind, dust and vermin. No loose mortar, broken tiles or rust. |
| Sheet Size (mm) | 2400 x 1200 |
| Thickness (mm) | 9, 13, 18 |
| Plywood | Grade BD |
| Stress Grade | F11 |
| Profile | V-groove 100mm spacing, half V-groove on each edge |
| Edge Profile | 12mm, 19mm Tongue & Groove |
| Timber Species | Radiata Pine |
| Applications | Ceilings and walls, lining, cabinet making |
| Sheet Size (mm) | 2400 x 1200 |
| Thickness (mm) | 25, 27, 32 |
| Veneer Grade | BB, CC; Face & Back Profile 180mm rippled profile |
| Joining System | Tongue & Groove |
| Stress Grade | F11, F14 |
| Timber Species | Radiata Pine |
| Applications | Sound attenuation and visual screening or fencing for exterior applications. |
| Sheet Size (mm) | 1800 x 1200, 2400 x 1200, cut to size |
| Thickness (mm) | 12, 17, 19, 21, >21 |
| Anti-Slip Surface | Heavy duty textured coating incorporating ground glass available in safety yellow, grey or black. Phenolic film on reverse side for moisture protection in wet or damp areas. |
| Face Veneer | 0.9mm hardwood face and back |
| Stress Grade | F17 |
| Applications | Permanent and temporary walkways and stairs where safety is paramount |
| Sheet Size (mm) | 2400 x 1200, 1800 x 1200 |
| Thickness (mm) | 15, 18, 21, 24, 27, 30, 33, 36, 39 |
| Plywood Grade | DD |
| Stress Grade & Species | F22 – Flooded Gum (Eucalyptus grandis) F27 – Blackbutt (Eucalyptus pilularis); Spotted Gum (Corymbia Maculata ) and Sydney Blue Gum (Eucalyptus saligna) |
| Applications | Flooring and other commercial and industrial structural and decorative applications (interior only). |
Where to Use ArmourPly Structural Plywood
Bushfire-Prone Areas
Compliant for use in designated bushfire zones across Australian states.
Flooring Applications
Suitable as a flooring substrate or finished floor surface.
Internal Lining
Suitable for internal wall lining and ceiling applications.
Joinery & Cabinetry
Suitable for joinery, cabinetry, and benchtop applications.
Frequently Asked Questions
What is the difference between structural and non-structural plywood?
The key difference is the glue bond and structural grading. Structural plywood uses an A-bond (Type A phenolic) glue line and is stress graded and certified to AS/NZS 2269, so it can carry structural loads. Non-structural plywood uses a less durable bond and is not rated for load-bearing use. ArmourPly is a structural panel manufactured to AS/NZS 2269.
What is structural plywood used for?
Structural plywood is used for wall and roof bracing, structural flooring and mezzanines, internal lining, and as a substrate in joinery and cabinetry. Grade and thickness are selected to suit the span and load of the application.
What thickness does structural plywood come in?
ArmourPly is available from 7mm to 25mm in standard 2400 x 1200mm sheets, with thicker sheets available on request. The right thickness depends on the application, span and load, so confirm with your trade centre or against the relevant span tables.
What stress grade of plywood do I need?
Stress grades range from F11 to F27. F11 radiata pine panels suit bracing, residential flooring and lining, while higher grades such as F22 and F27 use dense hardwood veneers for heavy-duty commercial and industrial flooring. Match the grade to the structural demand of your project.
Is ArmourPly termite resistant?
Yes. The ArmourPly range is termite resistant without chemical treatment, which is a distinctive property among Australian structural panels. That makes it suitable for applications where treated timber is undesirable, without giving up resistance. Grade and thickness selection still follow the structural requirements of the job.
What is EWPAA certification?
Every ArmourPly sheet is produced under the EWPAA product certification scheme with JAS-ANZ accreditation. In practice this means the stress grade stamped on the sheet is verified through audited quality assurance rather than assumed, so the structural capacity a specifier designs against is the capacity the panel actually delivers.
More Structural Plywood Products

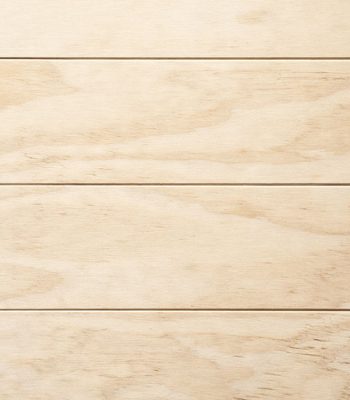

V-Grooved Plywood & Panelling
