T&G Ply - Flooring & Roofing
Armourply T&G Flooring: T & G Structural ply flooring and roofing is ideal for residential applications, but is also...
Radiata Pine
15, 17, 19, 21, 25
2400 x 1200 with 2700 x 1200 or 2250 x 1200 available on request
About T&G Ply - Flooring & Roofing

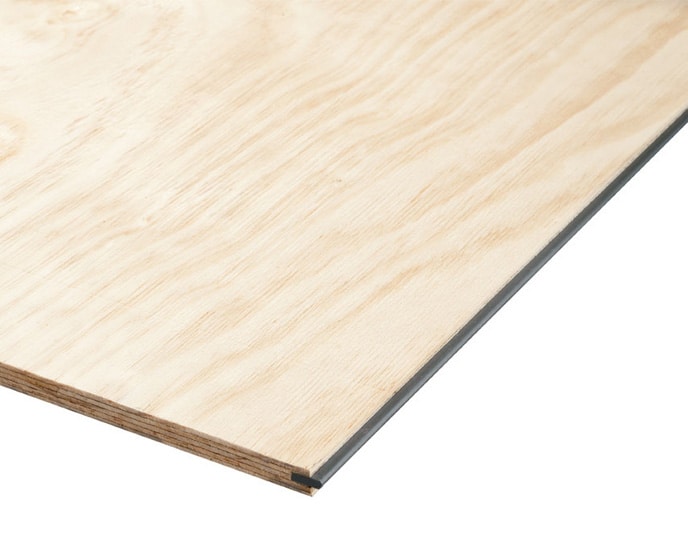

Armourply T&G Flooring:
T & G Structural ply flooring and roofing is ideal for residential applications, but is also designed to cope with highly concentrated loads specified in commercial and industrial floors. T&G Plywood is manufactured using ‘A” bond glue and comes in a range of stress grades to suit all applications.
Thicknesses include 15, 17, 19, 21 & 25mm. Standard sheet size (mm) 2400×1200 with 2700×1200 or 2250×1200 available on request.
T&G structural flooring should be installed in accordance with EWPAA recommendations. See “Tongued and Grooved Residential Flooring” publication, available from www.ewp.asn.au. Download our brochure for minimum thicknesses for trafficable floors in residential applications with occupancy requirements of 2.7kN concentrated live loads, as detailed in the Loading Code (AS/NZS1170.1 “Structural design actions – Permanent, imposed and other actions”).
Armourply T&G Roofing
Lightweight system allows cost savings by reducing weight of overall roof structure. Plywood base creates fully braced roof structure. Thicknesses include 12 & 15mm.
Technical Specifications & Variants
Full Specifications
| Standard Sheet Size (mm) | 2400 x 1200 with 2700 x 1200 or 2250 x 1200 available on request |
| Thickness (mm) | 15, 17, 19, 21, 25 |
| Plywood | Grade CD |
| Stress Grade | F11 (F14 on request) |
| Timber Species | Radiata Pine |
| Applications | Structural residential flooring, mezzanines, transportables. |
| Formaldehyde Emissions | Super E0 |
| Standard Sheet Size (mm) | 2400 x 1200 with 2700 x 1200 or 2250 x 1200 available on request |
| Thickness (mm) | 12, 15 |
| Plywood | Grade DD |
| Stress Grade | F11 |
| Timber Species | Radiata Pine |
| Benefits | Reduced penetration of wind, dust and vermin. No loose mortar, broken tiles or rust. |
| Formaldehyde Emissions | Super E0 |
Where to Use T&G Ply - Flooring & Roofing
Residential Construction
Suitable for new residential builds and home construction projects.
Flooring Applications
Suitable as a flooring substrate or finished floor surface.
Structural Applications
Suitable for structural and load-bearing applications.
