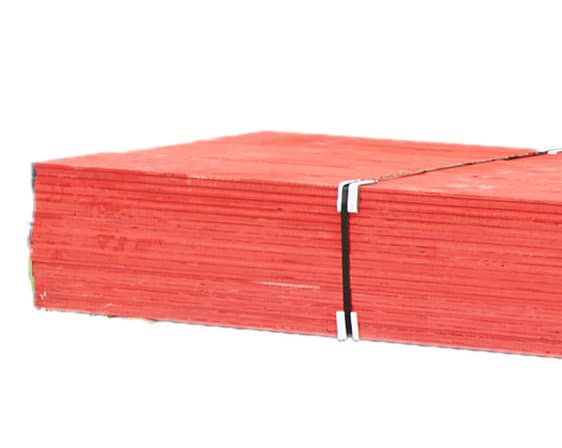

FormBEAM LVL
Purpose-engineered Laminated Veneer Lumber (LVL) for high-performance concrete formwork applications.
LVL
45mm, 63mm, 75mm
95mm, 130mm, 150mm
1.8m - 6.0m
Quick Contact
By submitting this form you agree to our Privacy Policy.
About FormBEAM LVL
FormBEAM is a structural Laminated Veneer Lumber (LVL) beam manufactured under a controlled production process to provide reliable performance in demanding formwork applications.
Produced to meet the requirements of AS/NZS 4357 and independently audited and quality certified by BSI, FormBEAM offers consistent structural properties, dimensional accuracy and dependable performance across commercial and residential concrete construction projects.

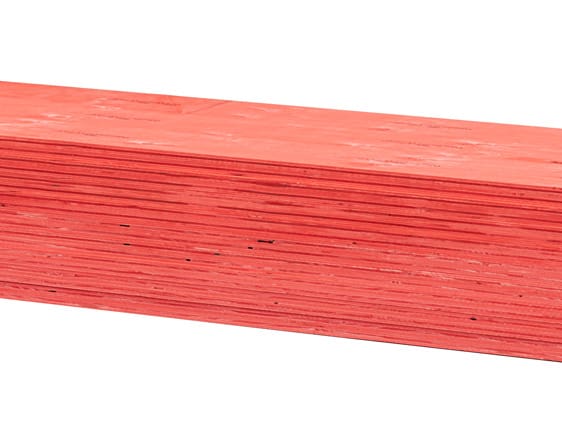

Each beam is painted bright orange for easy product identification and added moisture resistance, with board ends colour-coded by length for quick and easy identification on site. FormBEAM also delivers on sustainability, with formaldehyde emissions of less than 0.3mg/L (equivalent to Super E) and timber sourced from managed plantation forests.
FormBEAM is suitable for use as formwork bearers and joists, as well as soldiers and walers, making it a versatile choice for concrete formwork systems on residential, commercial and civil projects.
Technical Specifications & Variants
Full Specifications
| Material | Laminated Veneer Lumber (LVL) |
| Species | Mixed |
| Thickness | 45mm, 63mm, 75mm |
| Widths | 95mm, 130mm, 150mm |
| Length | 1.8m, 2.4m, 3.6m, 4.8m, 6.0m |
| Adhesive | Phenolic |
| Bond Type | Type A (Marine) |
| Density | Approximately 610kg/m³ |
| Formaldehyde Emissions | Less than 0.3mg/L (Super E Equivalent) |
Where to Use FormBEAM LVL
Concrete Formwork
Designed for use as formwork in concrete construction.
Structural Applications
Suitable for structural and load-bearing applications.
Bearers & Joists
Suitable for bearers and load-bearing joists.
Downloads & Documentation
Watch FormBEAM LVL in Action
1:02
Formwork LVL - Laminated Veneer Lumber
Formwork SolutionsFrequently Asked Questions
What is FormBEAM used for?
FormBEAM is specifically engineered for structural concrete formwork applications. It is commonly used as formwork bearers, joists, soldiers and walers on residential, commercial and civil construction projects, providing the strength and consistency required for reliable concrete support.
How can I identify the correct FormBEAM length on site?
Each FormBEAM is painted bright orange for easy product identification, while the beam ends are colour-coded according to length. This allows builders and formworkers to quickly select the correct beam, helping improve efficiency and reduce handling time on site.
Why Choose FormBEAM?
With decades of experience supplying Australia’s construction industry, Big River Group provides engineered timber solutions trusted by builders, formworkers and commercial contractors nationwide.
FormBEAM combines certified structural performance, efficient on-site identification and dependable quality to help deliver safer, faster and more efficient concrete formwork systems.
Can I get more technical information?
FormBEAM is manufactured, tested and assigned characteristic values in accordance with:
- AS/NZS 4357 – Structural Laminated Veneer Lumber
- AS 3610 – Formwork for Concrete
- AS 1720.1 – Timber Structures
- AS/NZS 4063.2 – Characteristic Values for Structural Timber Products
Design tables are available for bearer and joist span capacities across a range of concrete slab thicknesses and spacing configurations. Refer to the Product Brochure for complete engineering information.
More Formwork Products

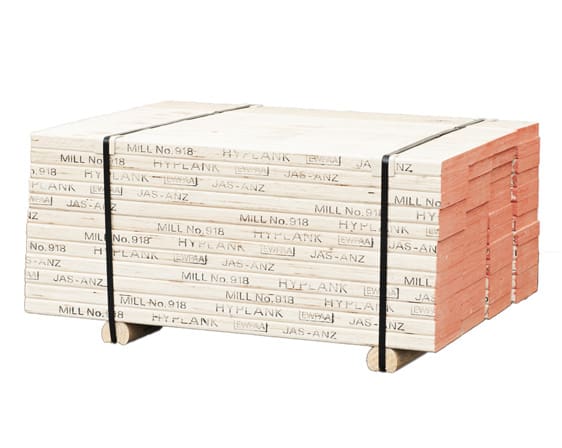

Scaffold Plank
Big River Group’s Scaffold Plank is recognised for its safe and dependable performance.
Scaffold planking
Formwork Accessories
Big River Group provides a full range of Formwork accessories, from nails and saw blades to shoring systems, braces...
Concrete formwork and accessories
ArmourDeck™ Steel Formwork
Permanent steel formwork for suspended concrete slabs
Multi-storey suspended slabs
ArmourForm Formply - F17
Structural plywood for concrete formwork. F17 stress grade.
Residential and commercial concrete formwork

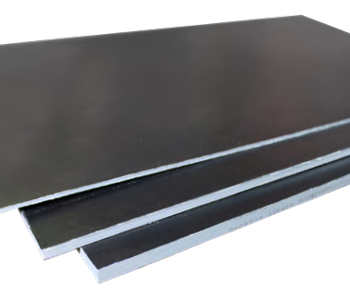

Deckply F17
A high-quality plywood panel developed & engineered from graded eucalyptus veneers.
Off-form Concrete Finishes

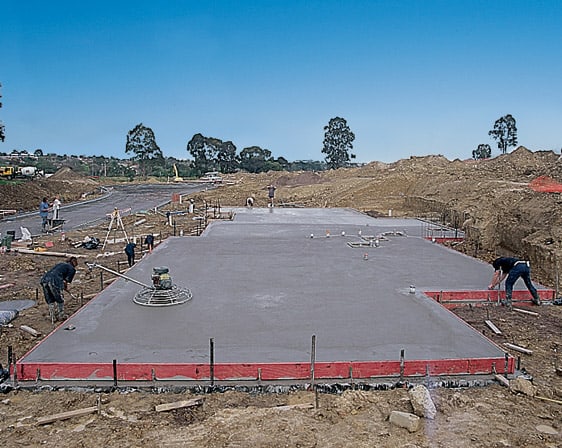

RedEdge
RedEdge features a square edge for clean concrete formwork finishes.
Formwork

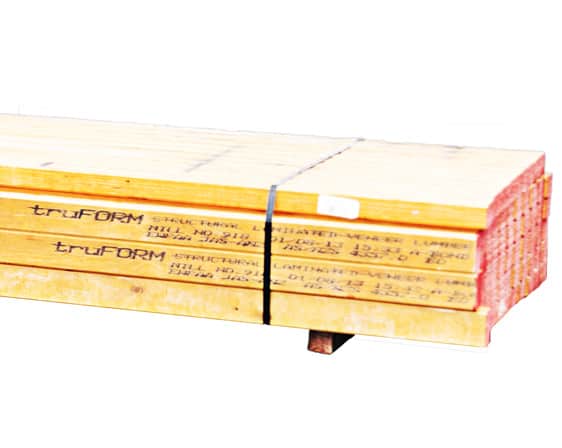

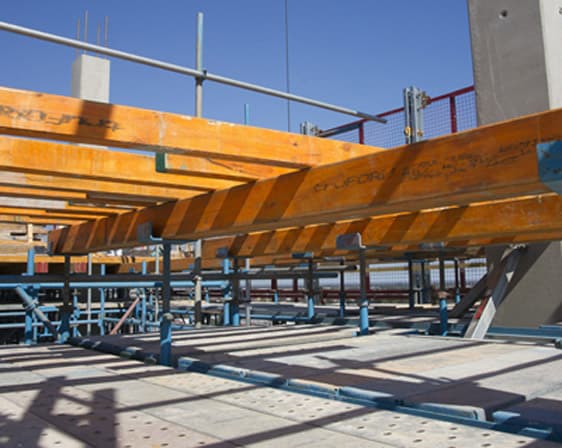

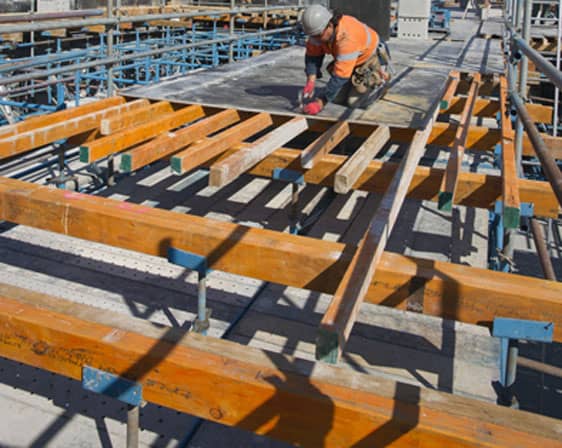

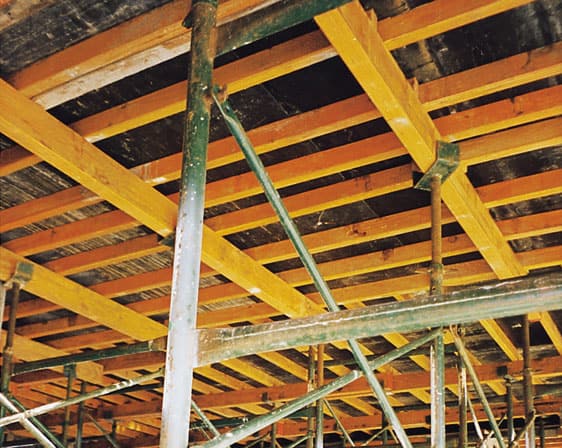

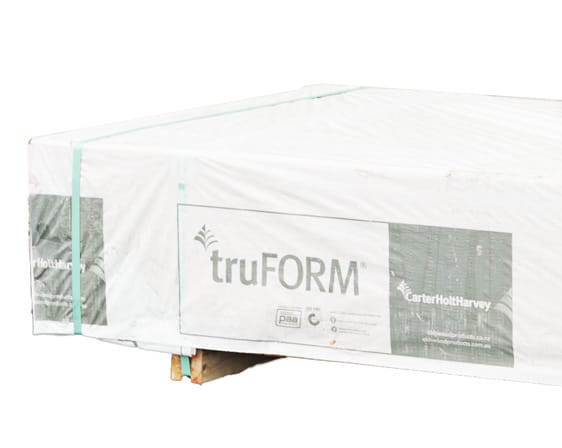

TruForm
