Sheet and Panels

Sheets & Panels

OVERVIEW

Commercial Exteriors - Attractive, Affordable & Modern We supply a range of affordable options for exterior panelling and cladding. Sourced from ...

Sheet and Panels

Commercial Exteriors – Attractive, Affordable & Modern

We supply a range of affordable options for exterior panelling and cladding. Sourced from leading brands these are affordable, with no compromises on style or quality.

Easylap™ Panel
Easylap™ panel is a rapidly and easily installed solution for external wall cladding in residential and medium-density housing. This easy application makes it perfect when a uniform broadwall cladding is required. It’s suited for full wrap or composite construction designs and is pre-primed with a shiplap edge joint along the two long edges, making it ready for finishing with a site-applied textured.

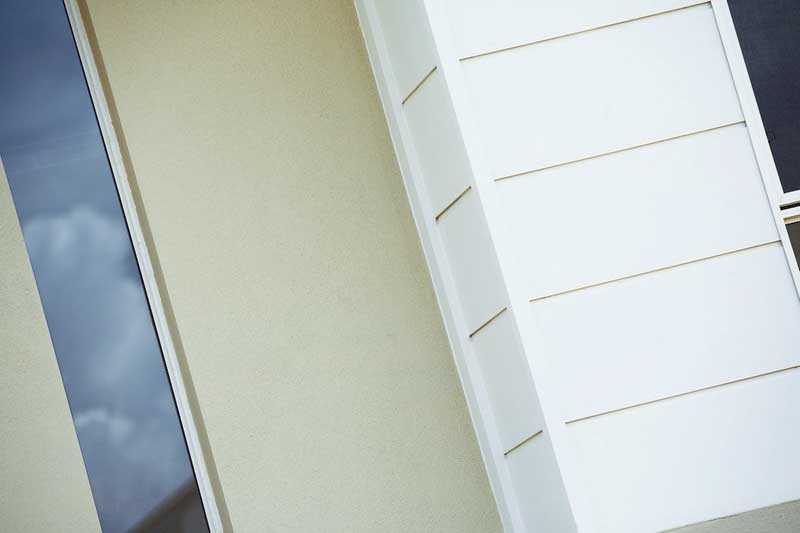

HardieTex™ Blueboard Rendering System
Suitable for residential buildings with its robust, pre-primed base sheetthis cladding is able to be finished on-site with a specialised 2mm thick texture coat system. The HardieTex™ system, or blueboard, provides a flawless canvas for a diverse mix of colours and textures to match your own creative desires.

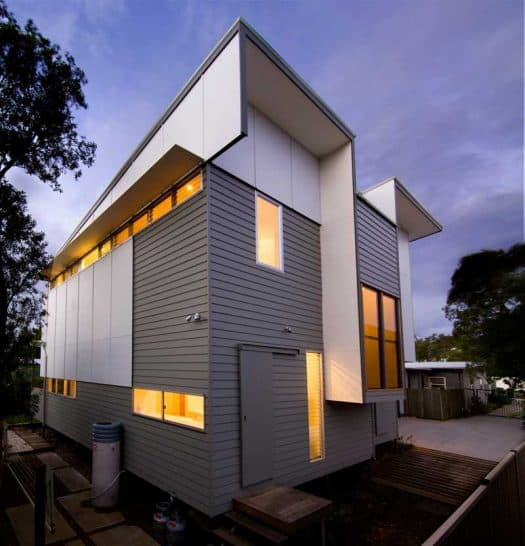

HardieFlex™ Sheet – a cost effective cladding solution
Used in new medium density and renovations in residential homes the smooth, flat panel of HardieFlex™ sheet gives a timeless aesthetic as external cladding, eaves and soffit linings. HardieFlex™ fibre reinforced cement sheet is painted on-site to create a flat panel look and used with Scyon™ Axent™ trim is easy to achieve a variety of appearances. It’s fast to install, lightweight with square edges and resistant to damage from termites, rot and fire.

PanelClad® Sheet
A pre-textured and site-painted sheet that is suitable as internal or external entire wall cladding, or alternatively as fantastic feature walls or gable ends. Available for residential use in two absolutely timeless styles: PanelClad® Stucco sheet resembling a rendered cement look and PanelClad® Textureline sheet resembling rough-hewn timber. These styles are perfect on either timber or light gauge steel framed homes, being lightweight and with easy installation.

Easylap™ panel

Sizes available include:

Product code Length(mm) Width(mm) Thickness(mm) Mass(kg/m2)
404186 3,000 900 8.5 12.46
404184 2,440 1,200 8.5 12.46
404185 3,000 1,200 8.5 12.46

Features include:

  • Able to hold tiles up to 50kg/m2
  • Suitable for Bushfire construction up to BAL-40
  • Up to 60 minutes Fire Rating when used with HardieSmart™ wall systems*
  • An R-value of up to 3.44 can be achieved for the wall when used in conjunction with cavity construction and the right insulation
  • Made from thick and solid 8.5mm fibre cement
  • Resistant to damage from termites, rot and fire

Easylap™ panel

Sizes available include:

Product code Length(mm) Width(mm) Thickness(mm) Mass(kg/m2)
404186 3,000 900 8.5 12.46
404184 2,440 1,200 8.5 12.46
404185 3,000 1,200 8.5 12.46

Features include:

  • Able to hold tiles up to 50kg/m2
  • Suitable for Bushfire construction up to BAL-40
  • Up to 60 minutes Fire Rating when used with HardieSmart™ wall systems*
  • An R-value of up to 3.44 can be achieved for the wall when used in conjunction with cavity construction and the right insulation
  • Made from thick and solid 8.5mm fibre cement
  • Resistant to damage from termites, rot and fire

HardieTex™

Product code Length(mm) Width(mm) Thickness(mm) Mass(kg/m2)
400293 2,440 900 7.5 11.33
401651 2,440 1,200 7.5 11.33
400295 2,725 900 7.5 11.33
400294 2,725 1,200 7.5 11.33
400296 3,000 900 7.5 11.33
400291 3,000 1,200 7.5 11.33

HardieFlex™ sheet – a cost effective cladding solution

External Cladding Tech Spec(PrimeLine®, HardiePlank™, PanelClad® & HardieFlex™

Sizes include:

Product code Length(mm) Width(mm) Thickness(mm) Mass(kg/m2)
400195 1,800 900 4.5 6.50
400189 1,800 1,200 4.5 6.50
400188 2,100 1,200 4.5 6.50
400193 2,400 900 4.5 6.50
400186 2,400 1,200 4.5 6.50
400192 2,700 900 4.5 6.50
400184 2,700 1,200 4.5 6.50
400191 3,000 900 4.5 6.50
400182 3,000 1,200 4.5 6.50
400173 1,800 1,200 6.0 8.69
400175 2,400 900 6.0 8.69
400171 2,400 1,200 6.0 8.69
400169 2,700 1,200 6.0 8.69
401970 3,000 900 6.0 8.69
400167 3,000 1,200 6.0 8.69

PanelClad® sheet

External Cladding Tech Spec(PrimeLine®, HardiePlank™, PanelClad® & HardieFlex™

Sizes

Product code Profile Length(mm) Width(mm) Thickness(mm) Mass(kg/m2)
400404 Stucco 2,440 1,200 6 9.32
400417 TextureLine 2,700 1,198 6 9.28

Request a Quote

To get a prompt quote on any of these beautiful external cladding solutions contact your local Big River branch.
