PVC Wall System

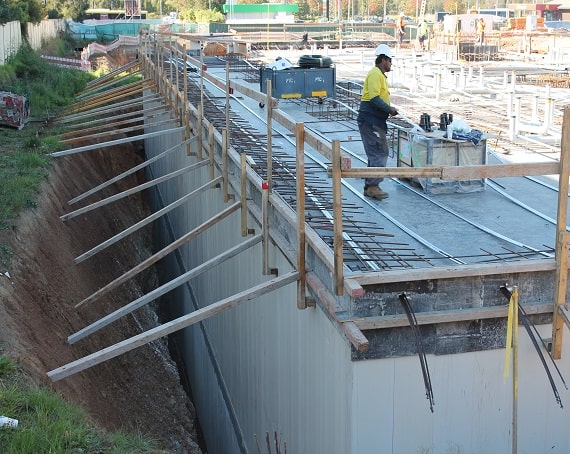

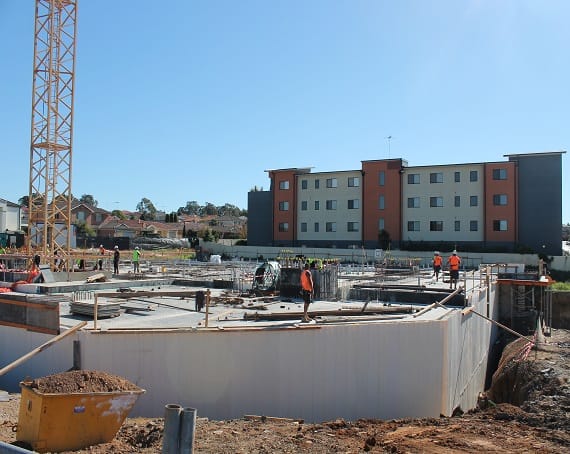

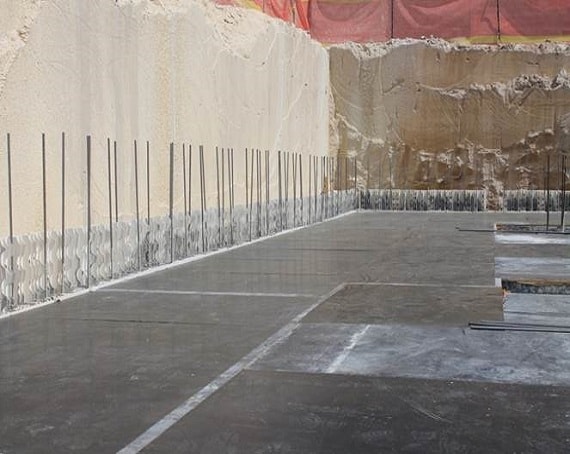

Permaform finished wall ground level

PVC Wall System Description

Big River is the premier Australian distributor for PVC Wall Systems – an exciting new product for builders, architects and engineers alike which is set to revolutionise how concrete formed walls are constructed.

The PVC Wall System is quick, strong and straight. It has been designed and produced for Australian conditions and remains in place for the lifetime of the structure.

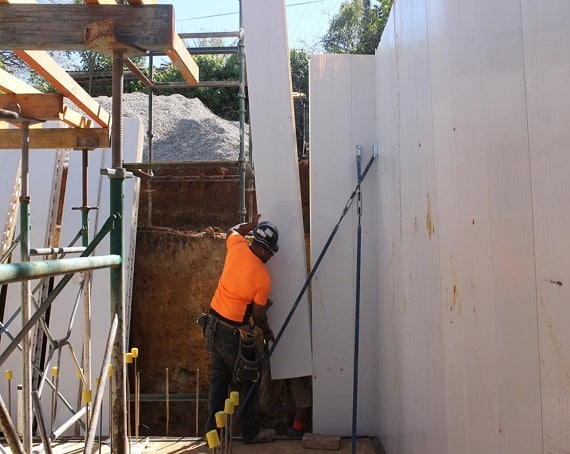

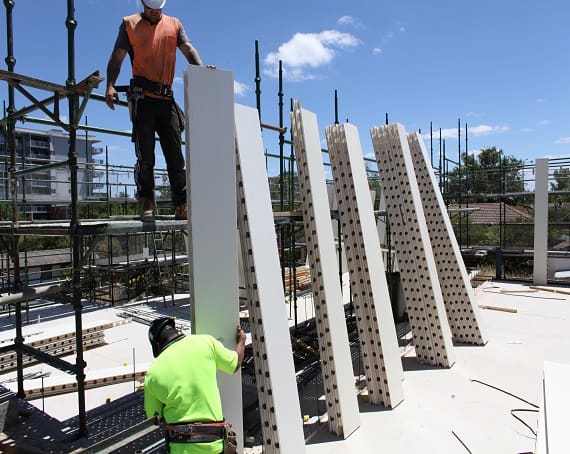

The PVC Wall System is lightweight and easy-to-install. The system allows the builder to replace traditional formwork practices in small to medium density residential applications reducing the overall construction time and costs of the project and without the need for cranes or other lifting equipment. Typically it is used in projects such as hotels, aged care, hospital and health care facilities, medium and high density residential buildings.

When concrete filled, it replaces the need for traditional block, brick or concrete walls in construction projects. It is clean and efficient and leaves no mess on site. Additional benefits include minimal wastage since it can be ordered to size, a durable finish with ability to apply alternative finishes such as paint, its ability to be completely waterproof, and its versatility.

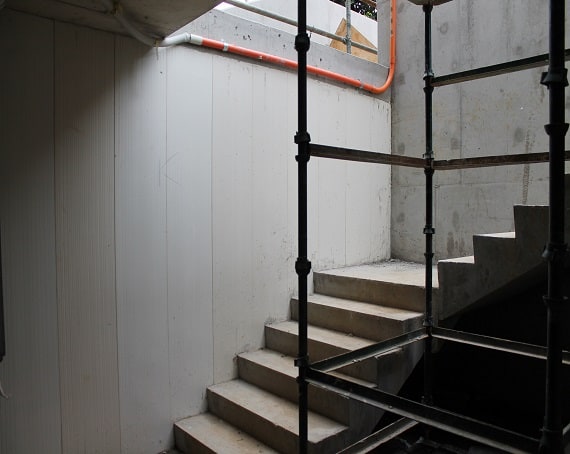

Applications include lift shafts and stair wells, basement walls, sheer walls, boundary walls, core walls, party walls, external walls, retaining walls, retention tanks and civil structure walls.

SPECIFICATIONS

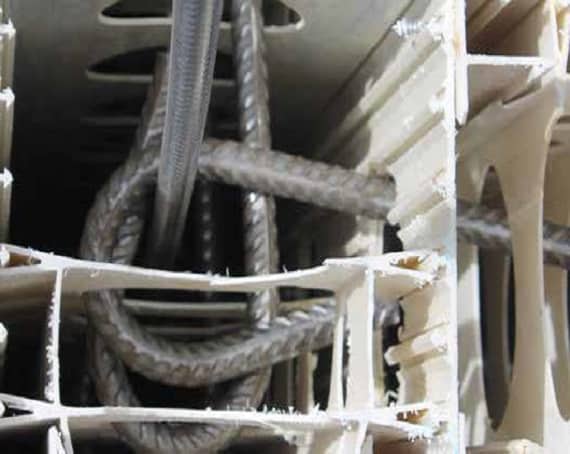

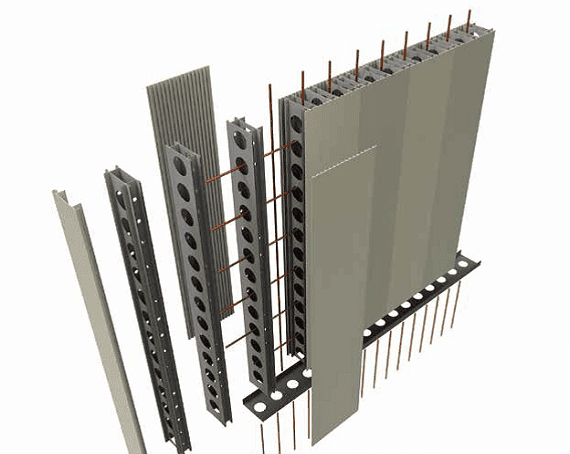

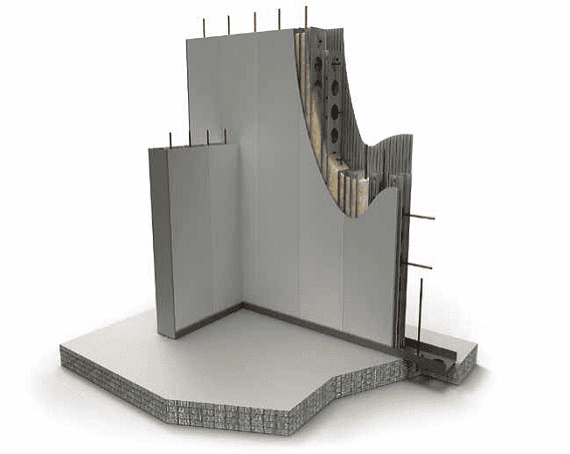

The PVC Wall System is made from Polyvinyl Chloride which is concrete filled and acts as sacrificial formwork for concrete walls. It consists of a number of outer sides and edges with interlocking central link panels that join the faces prior to concrete core filling. Once filled, it serves as structural elements allowing the builder to reduce the overall construction time and cost of the project.

Profile

Length

PANEL 400MM WIDE

6.0m

PANEL 200MM WIDE

6.0m

PANEL 100MM WIDE

6.0m

TOP CAP

3.3m

BOTTOM TRACK

3.3m

FEMALE JUNCTION TRACK

3.3m

MALE JUNCTION TRACK

3.3m

MALE END CAP

3.3m

FEMALE END CAP

3.3m

CORNER STOP

3.3m

 EDGE FLASHING

3.3m

PANEL CONNECTOR

3.3m

Fully Accredited

The PVC Wall System is compliant with Australian Standards AS3600 Concrete & AS3610 Formwork. It satisfies all relevant aspects of the BCA and AS/NZS 3837:1998 fire provisions, acoustic, WH&S and structural integrity.

Builders who have trialled the system found the speed of construction generated cost savings from less time and labour required on their projects making them more competitive. Its light weight easy to erect design is clean and efficient, leaving no mess on site.
