Protected: FrameMaster 60
FrameMaster 60 unlocks the full potential of your existing 60mm diameter tube conventional frame systems.
About Protected: FrameMaster 60

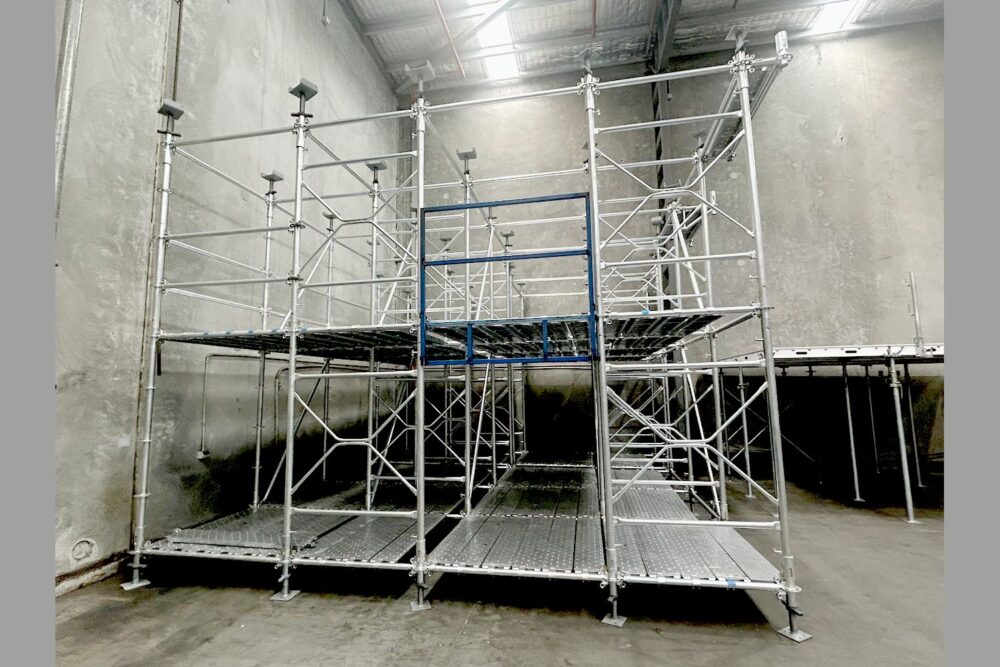

FrameMaster 60 takes a fresh approach to high strutting slab construction – purpose-built to unlock the full potential of the 60mm tube frames your crew already owns and operates. Rather than introducing unfamiliar equipment or additional hire costs, FrameMaster 60 integrates directly with your existing frames, transforming them into a capable high strutting falsework system without the need for specialist scaffold labour or separate falsework crews.
The result is a system that genuinely expands what your business can take on. Projects that may have previously required costly external resources – or been passed over entirely – become viable with the equipment already on your fleet. FrameMaster 60 works equally well with conventional formwork or aluminium panel formwork, making it a practical long-term investment that adds real value across a broad range of slab heights and project types.
Built for Every Configuration
FrameMaster 60 adapts to the demands of the job, with the flexibility to be deployed as:
- A high strutting falsework system paired with conventional formwork
- A high strutting falsework system paired with aluminium panel formwork
- An access system
- A prop-to-panel system for low strutting slabs
- A conventional low strutting falsework system with timber or aluminium panels
Safety as Standard – SafeWork Code of Practice Compliant
Safety is built into every element of the FrameMaster 60 design. The system provides comprehensive edge protection as standard, directly addressing the risk of falls from height for workers on deck and the risk of falling materials to those working below – meeting all requirements of the SafeWork Code of Practice.
Designed for Site Efficiency
Keeping the job moving is as important as keeping it safe. FrameMaster 60 comes equipped with construction stairs, standards, hop-ups and generous working decks as standard – making it straightforward for other trades to access the work area safely and keeping the overall project schedule on track from the ground up.
Technical Specifications & Variants
Full Specifications
| Tube Diameter | 60mm |
| Compatible Frame Systems | Acrow, RMD, Brooker, and most other 60mm tube conventional frames |
| System Type | High strutting falsework, access system and prop-to-panel system |
| Compliance | Meets current SafeWork NSW Code of Practice requirements |
| Features | Construction stairs, standards, hop-ups and large working decks |
Where to Use Protected: FrameMaster 60
High strutting suspended slabs
Multi-storey slab & shoring falsework
Projects currently reliant on hired scaffold-assembled falsework
Sites using Acrow, RMD, Brooker or similar 60mm tube frame systems
Frequently Asked Questions
What frame systems is FrameMaster 60 compatible with?
FrameMaster 60 is designed to work with most 60mm diameter tube conventional frame systems, such as Acrow, RMD and Brooker.
What's the difference between FrameMaster 50 and FrameMaster 60?
Both systems offer the same high strutting falsework, access and prop-to-panel functionality. The difference is the tube diameter they’re built to suit – 50mm for frames such as Pafili, Brooker Superframe and Monaco, and 60mm for frames such as Acrow, RMD and Brooker, so the right choice comes down to which frame system is already on site.
Is FrameMaster 60 compliant with SafeWork requirements?
Yes. The system is designed to meet current SafeWork Code of Practice requirements, with comprehensive edge protection built in.
