FLAMEfixx dFx®

H3 treated Radiata Pine combining timber preservation and fire-retardant technology, tested and approved for applications up to BAL-40.

KEY SPECIFICATIONS
Material
H3 Treated Radiata Pine
Thickness
22mm & 45mm
Widths
90mm, 140mm, 190mm, 240mm, 290mm
Length
3.6m, 4.2m, 4.8m, 5.4m & 6.0m
Fire Rating
AS/NZS 1530.3
BAL Rating
Up to BAL-40
CodeMark Certified H3 Treated Fire Resistant BAL-40 Termite Resistant

Quick Contact

    Prefer to talk? Call 1300 88 1958 Want to give us more information? Use our full enquiry form →

    By submitting this form you agree to our Privacy Policy.

    OVERVIEW

    About FLAMEfixx dFx®

    FLAMEfixx dFx® is an H3 treated Radiata Pine timber solution developed for construction in bushfire-prone environments. Its patented dFx® process technology combines a durable wood preservative and proprietary fire retardant into a single treatment solution.

    Extensively tested to meet BAL-40 requirements under AS 3959-2018, FLAMEfixx dFx® provides a timber option for projects where bushfire performance, durability and natural timber aesthetics are important. The product has also been tested to AS/NZS 1530.3, achieving a smoke generation value of 1 and spread of flame value of 0.

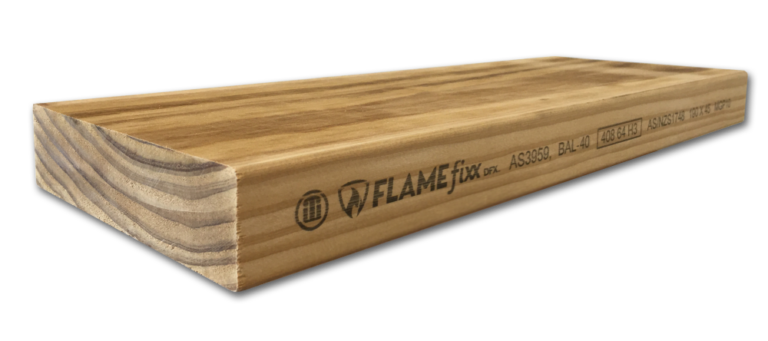

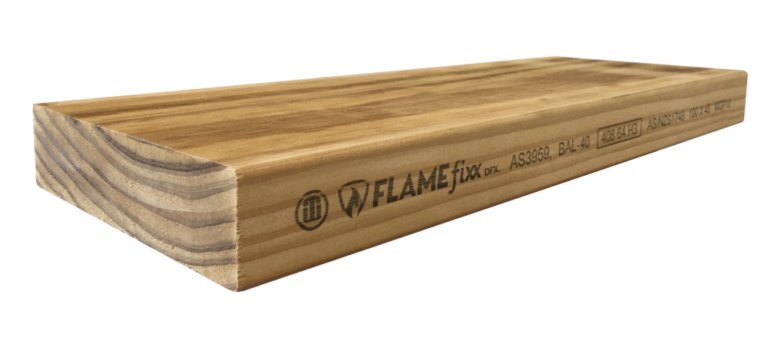

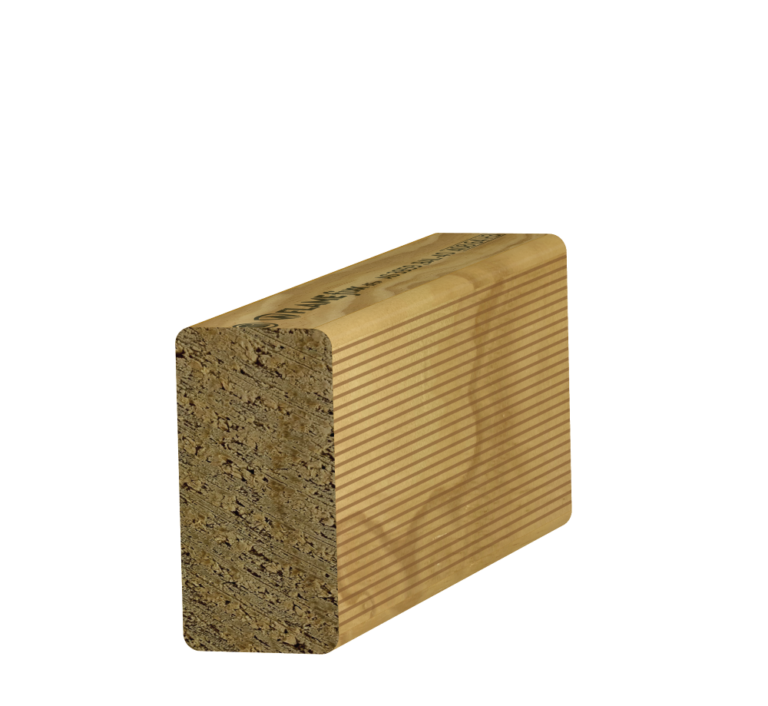

    FLAMEfixx dFx® structural timber is edge-branded for identification, displaying the FLAMEfixx dFx® logo, BAL rating, H3 Hazard Class, treatment plant number, chemical identification number and relevant Australian Standards.

    Available in structural and decking applications, the range includes MGP10 and F7 graded products in multiple dimensions and lengths. FLAMEfixx dFx® is backed by a 25-year performance warranty against fungal decay and termites when installed in exterior, above-ground applications.

    Manufactured from plantation-grown Radiata Pine sourced from continuously replenished forests, the product combines bushfire performance with a renewable timber resource.

    CodeMark Certified
    H3 Treated
    Fire Resistant
    Termite Resistant
    25 Year Performance Warranty
    SPECIFICATIONS

    Technical Specifications & Variants

    Full Specifications

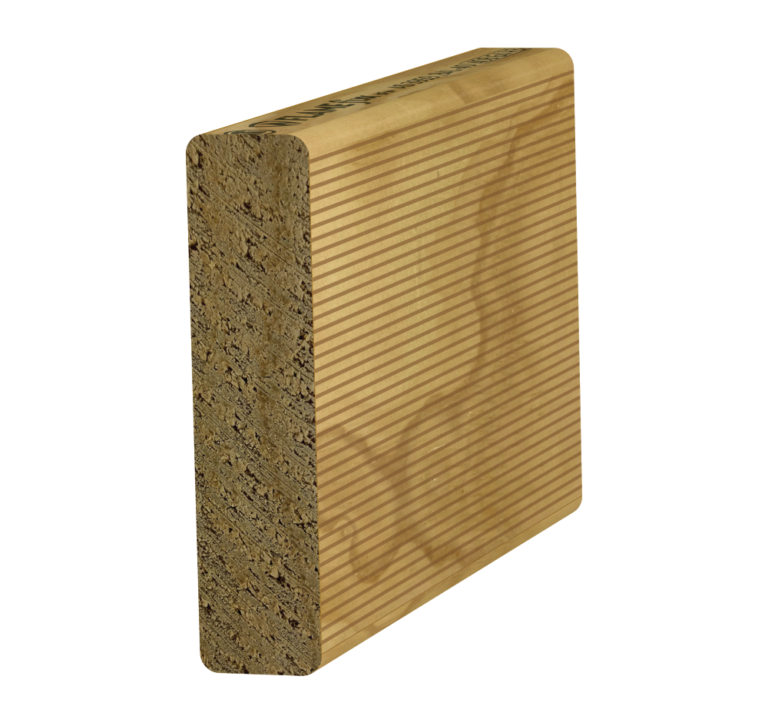

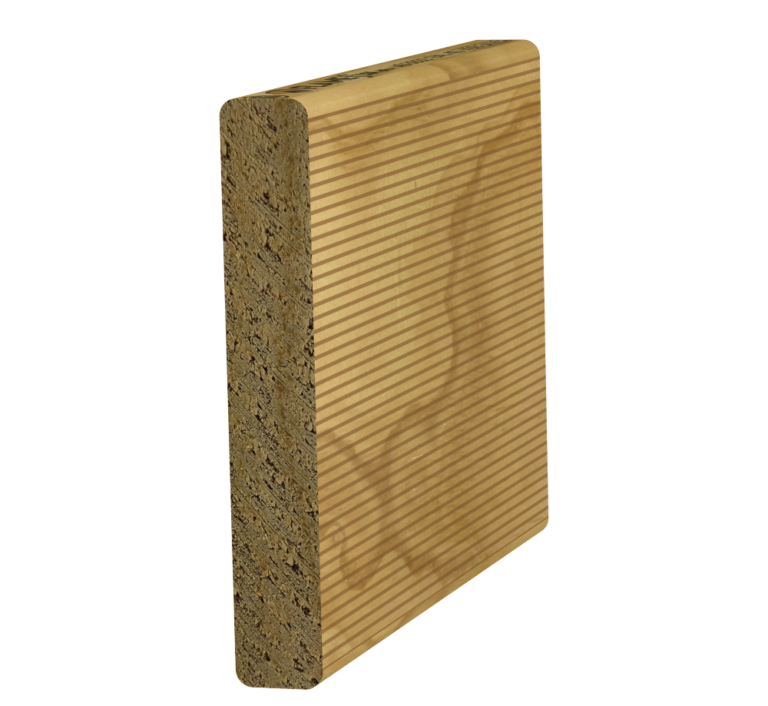

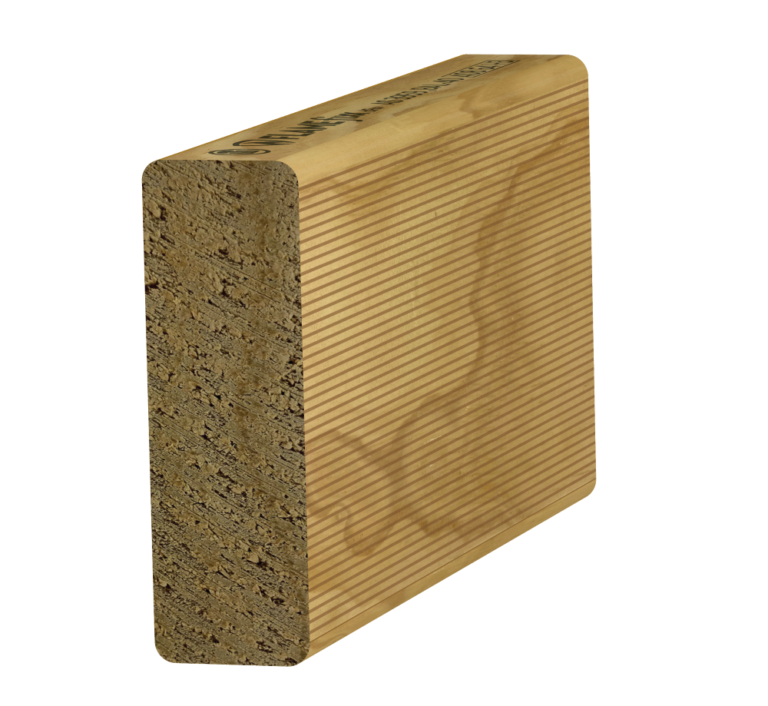

    Material H3 Treated Radiata Pine
    Thickness 22mm & 45mm
    Width 90mm, 140mm, 190mm, 240mm, 290mm
    Length 3.6m, 4.2m, 4.8m, 5.4m & 6.0m
    Stress Grades MGP10 and F7
    Standard AS 3959-2018; AS/NZS 1530.3
    Certification CodeMark Certified – CM70124; tested to meet BAL-40 requirements under AS 3959-2018.
    Fire Rating Tested to AS/NZS 1530.3 – Smoke Generation Value 1 and Spread of Flame Value 0
    BAL Rating BAL 12.5, 19, 29 & 40
    Surface Finish Natural treated timber; penetrating oils such as CUTEK EXTREME recommended for added protection.
    Termite Resistance Yes – covered by 25-year performance warranty when installed in exterior, above-ground applications
    Manufacturer FLAMEfixx dFx® / ITI Australia
    Warranty 25-Year Performance Warranty against fungal decay and termites when installed in exterior, above-ground applications.
    APPLICATIONS

    Where to Use FLAMEfixx dFx®

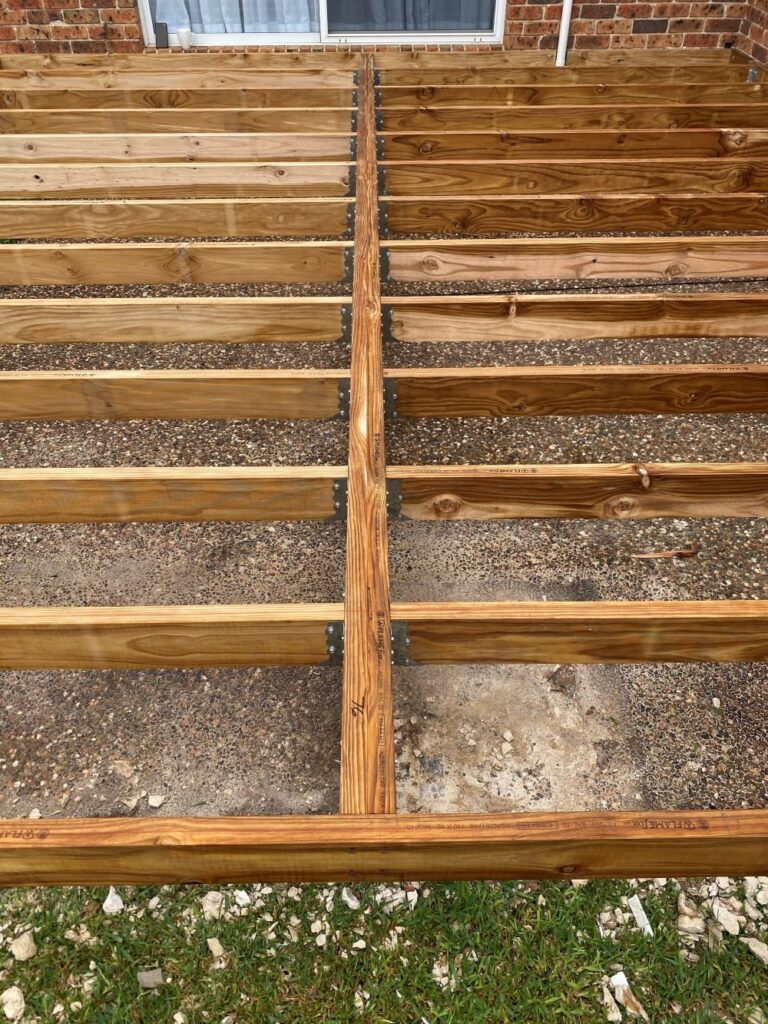

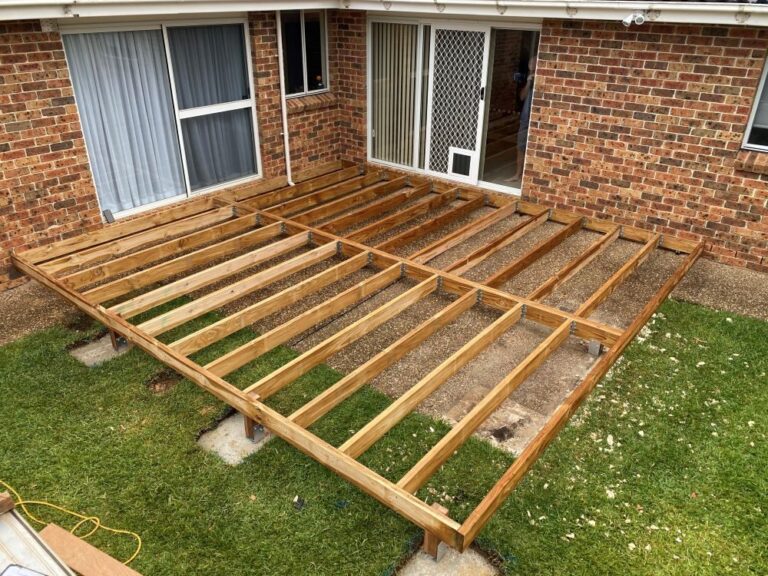

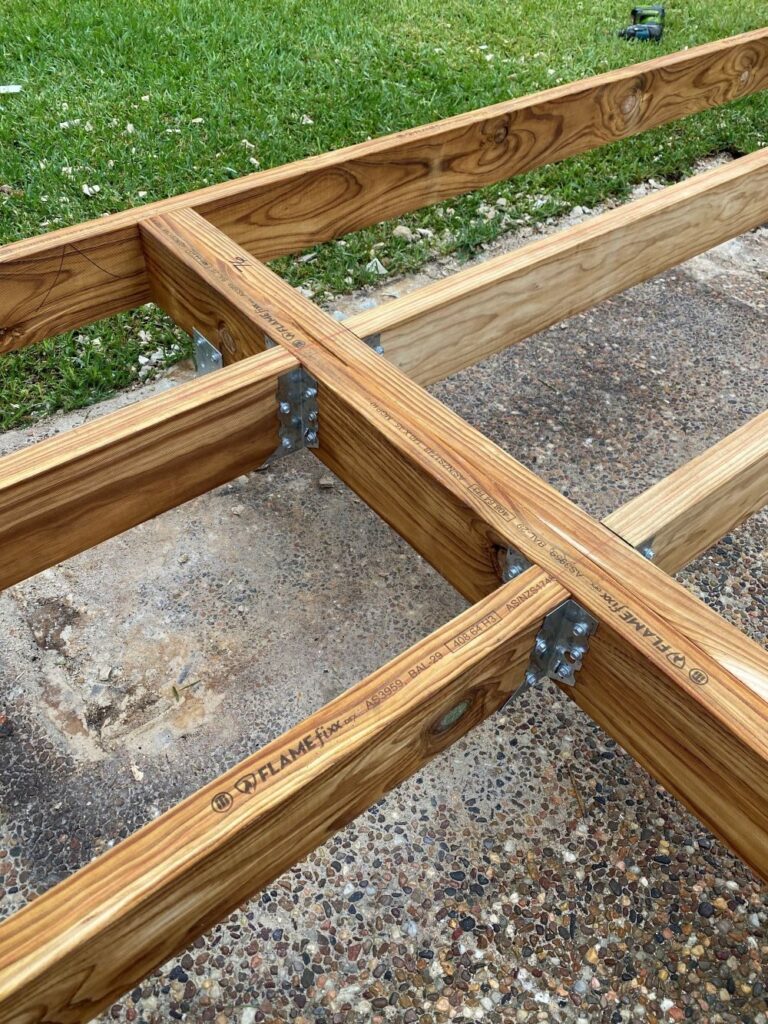

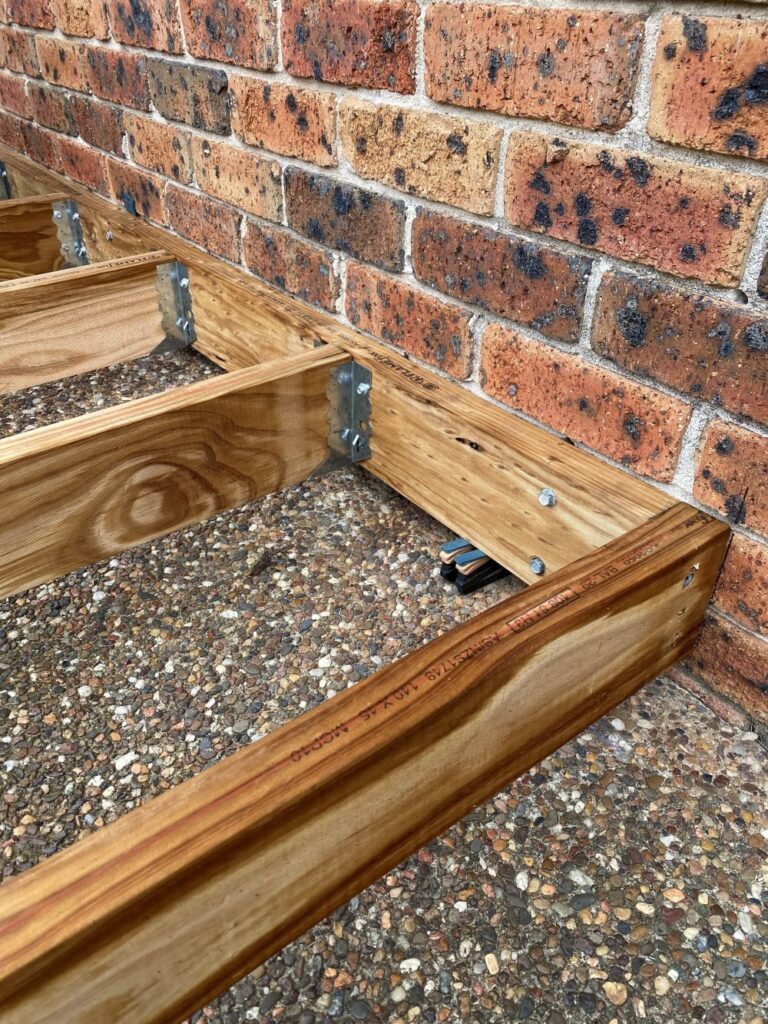

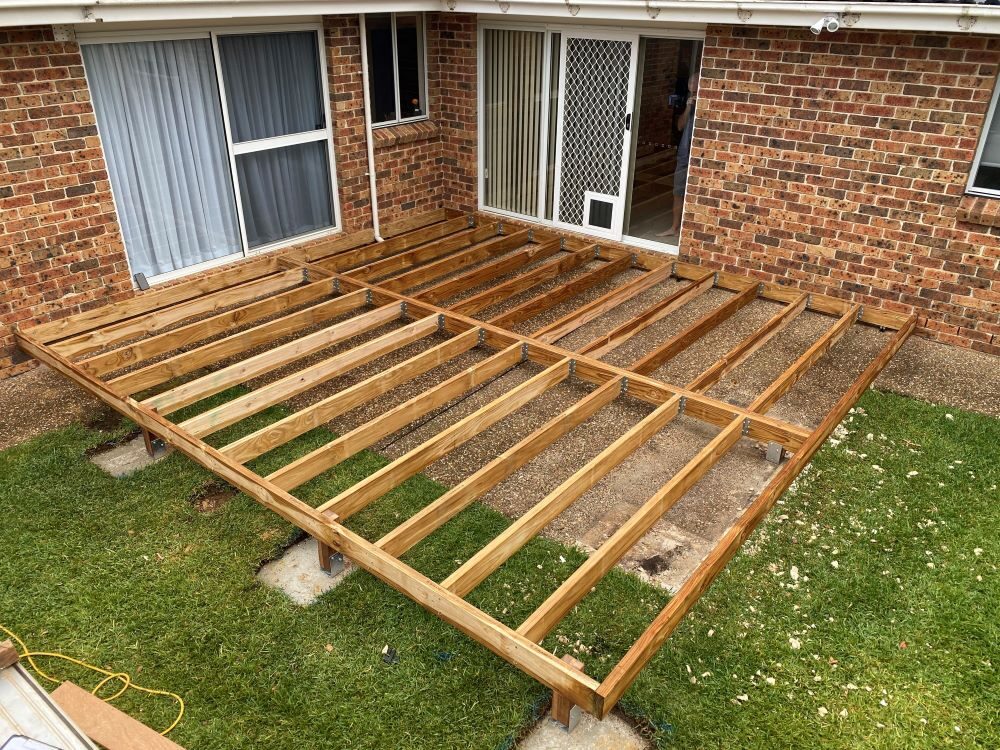

    Deck Bearers & Joists

    Structural framing for decks in bushfire-prone areas, giving the deck's support structure the same BAL 40 protection as the surface above it.

    Pergola Rafters

    Fire-retardant treated pine for pergola and patio structures, so exposed rafters meet bushfire requirements.

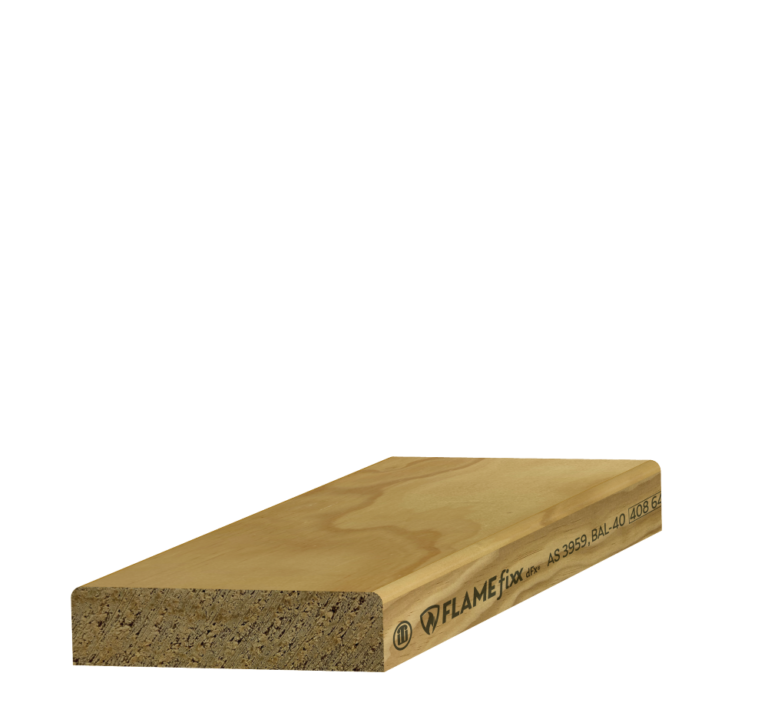

    Decks & Patios

    Premium grade decking boards for decks and patios, tested and approved up to and including BAL 40.

    DOCUMENTS

    Downloads & Documentation

    PDF Decking

    FLAMEfixx - Safety Data Sheet

    PDF - 193.9 KB

    PDF Decking

    FLAMEfixx - Warranty

    PDF - 426.3 KB

    FAQ

    Frequently Asked Questions

    What BAL rating is FLAMEfixx dFx® suitable for?

    FLAMEfixx dFx® has been extensively tested and meets the requirements of BAL-40 under AS 3959-2018.

    Is FLAMEfixx dFx® CodeMark Certified?

    Yes. FLAMEfixx is CodeMark Certified and displays certificate CM70124.

    What is dFx® technology?

    dFx® is patented technology combining a durable wood preservative and proprietary fire retardant into a single treatment solution.

    Does FLAMEfixx dFx® have a warranty?

    Yes. It carries a 25-year performance warranty against fungal decay and termites when installed in exterior, above-ground applications.

    PROJECTS

    FLAMEfixx dFx® in Action
